Temperature Resistant OM3 Bare Fiber with Effective Modal Bandwidth ≥2000 MHz*km and Low Attenuation 0.6 dB/km
| MOQ: | 4400m |
| Price: | Negotiation |

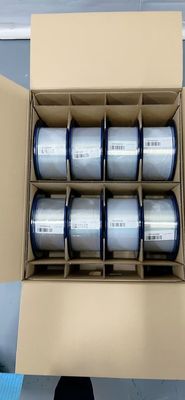

| Standard Packaging: | Carton Packing |
| Delivery Period: | 2-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 5000km/month |
Detail Information
Place of Origin
Netherland
Brand Name
Prysmian
Model Number
OM3 Bare Fibre
Name:
OM3 Bare Fiber
Fiber Type:
Multimode
Operating Temperature:
-65°C To +85°C
Effective Modal Bandwidth:
850nm: ≥2000 MHz*km
Overfilled Modal Bandwidth:
850 Nm: 1500 MHz*km, 1300 Nm: 500 MHz*km
Temperature Cycling:
-60℃ To 85℃ ≤0.1dB/km
Core Diameter:
50 Microns
DMD Specification:
Compliant With And More Stringent Than The Requirements Of IEC60793-2-10
Attenuation:
850 Nm: 2.4 DB/km, 1300 Nm: 0.6 DB/km
Highlight:
Multimode OM3 Fiber
,OM3 Fiber Temperature Resistant
,50 125 Fiber Optic Customized
Product Description
Multimode OM3 Bare Fiber Temperature Resistant 50/125 Fiber Optic Customized
Product Overview
Multimode OM3 Bare Fiber with Temperature Cycling -60°C to 85°C ≤0.1dB/km Effective Modal Bandwidth 850nm ≥2000 MHz*km
The OM3 Bare Fiber is a high-quality 10G Multimode Fiber (OM3) designed to meet demanding requirements of modern data communication systems. With exceptional performance characteristics, this fiber is ideal for applications requiring high-speed data transmission over short to medium distances.
Key Specifications
| Parameter | Value |
|---|---|
| Product Name | OM3 Bare Fiber |
| Attenuation at 850 nm | 2.4 dB/km |
| Attenuation at 1300 nm | 0.6 dB/km |
| Core Diameter | 50 microns |
| DMD Specification | Compliant with and more stringent than IEC60793-2-10 |
| Overfilled Modal Bandwidth at 850 nm | 1500 MHz*km |
| Overfilled Modal Bandwidth at 1300 nm | 500 MHz*km |
| Effective Modal Bandwidth at 850 nm | ≥2000 MHz*km |
| Operating Temperature Range | -60°C to +85°C |
Technical Features
- Low attenuation ensures minimal signal loss over long distances
- Differential Mode Delay (DMD) specification ensures precise signal transmission
- High overfilled modal bandwidth maximizes data transmission capacity
- Withstands extreme temperature cycling from -60°C to 85°C
- Maintains low attenuation rate (≤0.1 dB/km) under challenging conditions
- 50/125μm Multimode Fiber (OM3) design
- Versatile and cost-effective solution for various data communication requirements
Applications
- Data centers and enterprise networks
- Telecommunications systems
- Industrial facilities and automation
- Mission-critical operations requiring high-performance fiber optic cables
- Environments with significant temperature fluctuations
- Advanced networking applications requiring high-speed data transmission
Support and Services
Our technical support team is available to assist with any inquiries or issues regarding the OM3 Bare Fiber product. We provide comprehensive support including:
- Installation guidance and troubleshooting assistance
- Product specifications and technical documentation
- Maintenance plans and training programs
- On-site support options
Our goal is to ensure you have a seamless experience with our OM3 Bare Fiber product and maximize its performance for your specific needs.
